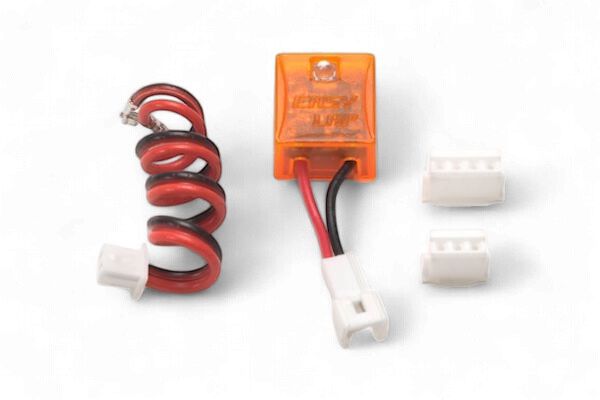

EasyLap Micro Transponder

The Hobby Hideaway Verdict: Essential Precision Timing for 1/28 Scale and Micro RC Racing! When you are turning laps on an indoor track, relying on stopwatch timing or guessing your pace won't cut it. The Hobby Hideaway Team considers the EasyLap Micro Transponder (ET001X) an absolute mandatory piece of kit for any micro RC racer. Measuring an ultra-compact 10.5mm x 9.5mm x 5.8mm, this featherweight infrared personal transponder is purpose-built to fit into the tightest chassis layouts without upsetting your car's corner-to-corner weight distribution or center of gravity.

Seamless Compatibility & Plug-and-Play Setup Engineered for complete cross-compatibility, the EasyLap Micro Transponder works seamlessly with both EasyLap and Robitronic infrared timing bridge systems—the gold standards for 1/28 scale micro racing around the world and on our local track! To make installation effortless, the kit includes multiple lead options out of the box, including connections for Kyosho Mini-Z ASF, Pro, Evo, and RWD/AWD RTR chassis, as well as a standard 3-pin JST connector for open-class micro receivers.

Key Features & Technical Specs:

• Ultra-Compact Footprint: Updated micro casing measures just 10.5mm x 9.5mm x 5.8mm, easily sliding into tight 1/28 scale chassis tubs.

• Dual-System Compatibility: Operates flawlessly with both EasyLap and Robitronic infrared lap-counting systems.

• Broad Voltage Input: Operates reliably on standard receiver power ranging from 4.0V to 6.0V DC max.

• Multi-Plug Harness Included: Comes equipped with leads for Mini-Z ASF, Pro, Evo, RWD/AWD RTR, and a standard 3-pin JST receiver plug.

• Featherweight Design: Minimal weight ensures your micro car retains its exact chassis balance and agile handling response.

• Track-Ready Accuracy: Emits a precise infrared signal to register lap times down to the thousandth of a second as you pass under the timing bridge.

Hobby Hideaway Pro Tip: Infrared transponders rely on a clear line of sight to the overhead timing bridge to log your laps consistently! When mounting the EasyLap Micro Transponder on your chassis, position it so the LED emitter points straight up toward your windshield or body roof cut-out. If you are running a fully painted scale or polycarbonate body shell, clear a small unpainted circle in the roof or windshield directly above the transponder—or mount the IR bulb in a body post hole—so the signal reaches the bridge cleanly without getting blocked by paint or window tint!

Why buy from Hobby Hideaway? Hobby Hideaway is more than just a retail storefront; we are a dedicated racing and building community. We advocate for an "old-school" service model where personal connection, mentorship, and technical education come first. Because we build, tune, and race micro RC cars right alongside our customers, we know how important reliable timing hardware is on race day. Whether you are setting up your first Mini-Z kit, gearing up for club racing, or fine-tuning your chassis balance, our team provides the hands-on support you need to keep your lap times dropping.

Join the Action in Ottawa! Ready to track your lap times and join the grid? Stop by our shop in Ottawa at 112-1455 Youville Dr in Orléans. Pick up your EasyLap Micro Transponder, plug it in at our pit tables, and test your pace against the clock on our indoor tracks. Join our ever-growing community of local racers, compare lap sheets, and experience the thrill of micro RC racing in person!

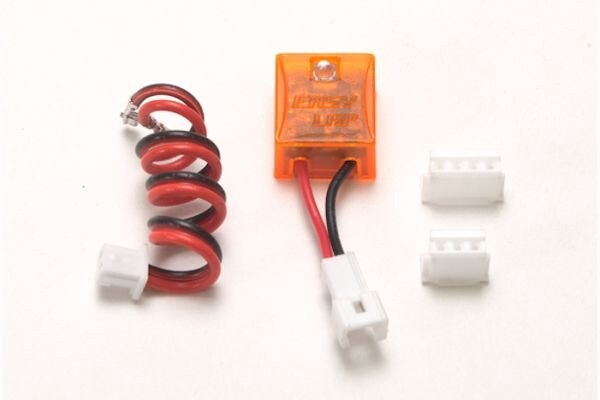

Note: Includes one (1) EasyLap Micro Transponder unit with Mini-Z and standard 3-pin JST wiring harnesses. (Note: Kyosho Mini-Z MR-03/AWD "Sports" series boards with blue antennas require the optional ET009-S adapter cable, sold separately).
