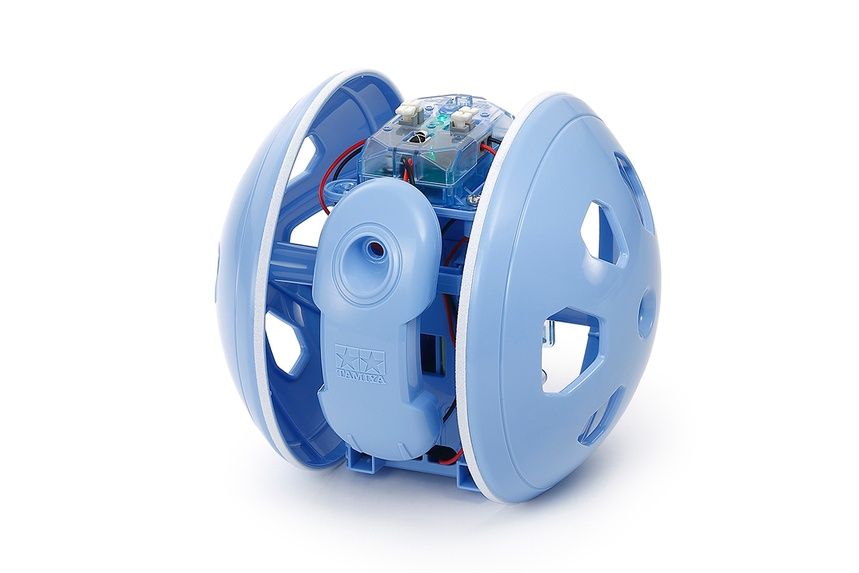

Rolling Robot 2-Channel Ir Remote Control

This Rolling Robot assembly kit features one big hemispherical wheel, one for the left and right side. The Rolling Robot is operated easily by the included infrared remote controller after assembly. Additionally, the robot employs the use of heavy parts such as gearbox and batteries (batteries sold separately) which work as the center of gravity and move like a ball by transferring that center of gravity.

About the Rolling Robot

• Length: 120mm, width: 130mm, height: 120mm (approximate dimensions). Weight: approximately 260g (including batteries).

• Speed: about 12cm/s. (The model moves 1meter in about 8 seconds.)

• Continuous running time: about five hours.

• Challenge level: 3 (5 is the highest.). Approximate assembly time: 120 - 180 minutes.

• The robot gets back to its original position even if it falls on its side.

• Operate this Rolling Robot with the included Infrared Remote Control Unit (infrared remote controller and receiver). The robot has one motor each for right and left wheels, and offers the following motion: forward, reverse, right and left turns and pivot turns.

• Attach two arms and two stabilizers in any of eight attachment positions you like to enjoy different motion. (Example: The robot can push things with two arms.)

• Two assembled gearboxes have two motors (one motor for each gearbox) and require wiring only.

• The part which looks like a robot face has a 5mm diameter hole which allows modifications such as LED attachment.

• Battery case features removable terminals which ensure ease of wiring.

• The unit composed of two assembled gearboxes has two tapping screw holes at a 40mm interval, letting you customize your robot to desired construction projects.

• NOTE: The rolling robot cannot be operated outside (under sunlight). Operating distance from infrared controller is 1.5-meters.

About the Infrared Remote-Control Unit (infrared remote controller and receiver)

• The infrared LED sends signals to the receiver on the robot according to buttons pushed.

• The receiver has two output terminals which not only control the motors but may also be used to connect LED lights. (sold separately)

Batteries required (sold separately):

• AAA batteries x3 (for Rolling Robot)

• Coin battery (CR2025) x1 (for Infrared Remote-Control Unit)
